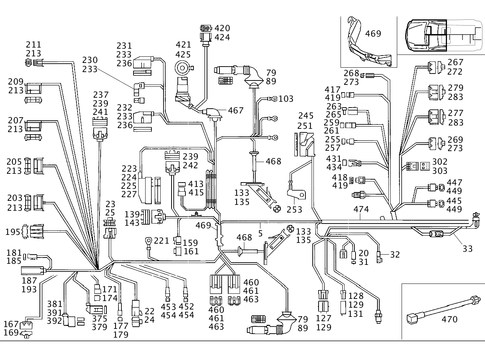

Inboard Cable Harness for 1999 Mercedes-Benz ML 320
No.
Part # / Description / Price
Price
N/A
Wiring Harness
Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED ACCORDING TO THE TOTAL LINE CROSS-SECTION TO BE CONNECTED. FOR REPAIR INSTRUCTIONS, SEE WIS
SOLD.CONN.SLVS: A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT CONNECTOR: A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
Description: Belt lock switch s68.
N/A
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED ACCORDING TO THE TOTAL LINE CROSS-SECTION TO BE CONNECTED. FOR REPAIR INSTRUCTIONS, SEE WIS
SOLD.CONN.SLVS: A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT CONNECTOR: A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
Description: Emergency tensioning retractor r12.
N/A
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED ACCORDING TO THE TOTAL LINE CROSS-SECTION TO BE CONNECTED. FOR REPAIR INSTRUCTIONS, SEE WIS
SOLD.CONN.SLVS: A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT CONNECTOR: A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
Description: Air bag a45.
N/A
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED ACCORDING TO THE TOTAL LINE CROSS-SECTION TO BE CONNECTED. FOR REPAIR INSTRUCTIONS, SEE WIS
SOLD.CONN.SLVS: A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT CONNECTOR: A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
Description: Sensor sidebag a53.
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Inboard cable harness.
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Inboard cable harness.
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Inboard cable harness.
17
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Central locking mechanism operating motor tank flap. 2-pin 150s. Central locking system. 2-pin 150s. Microphone. 2-pin 150s. Outdoor temperature sensor. 2-pin 150s. Rear axle brake lining wear indicator, left. 2-pin 150s. Seat belt buckle. 2-pin 150s.
20
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Microphone. Programming connection. Seat heater feed-in 2. Transmitter.
22
Plug Mercedes-Benz
Mercedes-Benz Description: Antenna splitter. Cockpit cable harness plug-connection. Pressure sensor. Roof.
30
Contact Spring Mercedes-Benz
Mercedes-Benz Description: 0.8-1.0 mm2, to 010 545 21 26. 0.5-1.0 mm2 150s delphi. 0.8-1.0 mm2, to a 010 545 31 26. 0.5-1.0 mm2 150s delphi. Seat belt buckle 0.8-1.0 mm2. 0.5-1.0 mm2 150s delphi. 0,5-1,0mm. 0.5-1.0 mm2 150s delphi.
31
Contact Spring Mercedes-Benz
Mercedes-Benz Description: 0,35-0,5mm. 0.35-0.5 mm2 150s delphi. Seat belt buckle 0.35-0.5 mm2. 0.35-0.5 mm2 150s delphi.
33
Plug Mercedes-Benz
Mercedes-Benz Description: Two-pin, d2b 90 degrees. To a 036 545 09 28. Two-pin, angular. Bipolar d2b 90 grad.
33
Plug Mercedes-Benz
Mercedes-Benz Description: 180 degree bracket. Two-pin, d2b 180 degrees. Cd changer. Two-pin, straight. Fiber optic cable contact. Bipolar d2b 180 grad.
MSRP $4.50
$4.05
MSRP $4.50
$4.05
33
Adapter Mercedes-Benz
Mercedes-Benz Description: Fiber optical cable coupling. Optical waveguide plug connector. Mobile phone disconnecting point. D2b optical waveguide to connection for individual interfaces.
MSRP $6.75
$6.00
MSRP $6.75
$6.00
43
Protective Cap Mercedes-Benz
Mercedes-Benz Description: Dome lamp, left rear e15/8,. 1-pin ff6.3. Rear foglamp plug-connection e3/1. 1-pin ff6.3. Reversing light e7. 1-pin ff6.3. Side window left x39/32. 1-pin ff6.3. Heated rear window r1/1. 1-pin ff6.3. License plate lamp. 1-pin ff6.3. Parking brake control. 1-pin ff6.3. Plug connection, interference suppressor. 1-pin ff6.3. Horn. 1-pin ff6.3. Brake fluid control. 1-pin ff6.3.
MSRP $1.80
$1.59
MSRP $1.80
$1.59
45
Contact Spring Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Heated rear window. 2.0-5.0 mm2.
51
Cable Shoe Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Fuse/relay box 5.1 mm2. Tank filler neck 1-2mm2.
53
Cable Shoe Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: 6.7 mm. On wheel arch in luggage compartment 5 mm2. Ground a-pillar 6.3 mm.
55
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Outside rearview mirror,electr. Adjustmt. Reading lamp and dome lamp. Rear window.
60
Plug Mercedes-Benz
Mercedes-Benz Description: Front right belt tens. Right rear belt tensioner. Front emergency tensioning retractor. Door partition points a-pillar left and right x35/41 x35/42. R12/2.
63
Cable Shoe Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: On wheel arch in luggage compartment 0.8 - 1 mm2.
67
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Plug connection of interior lighting. Speakers for sound system.
89
89
Spring Retaining Pin Mercedes-Benz
Mercedes-Benz Description: 0.5mm. 0.2-0.5 MM2 MT3
Leitungsquerschnitt Min/Max: 0,2-0,5mm2
Oberflächenschutz PINs: Au
ELA: -
Model 1: MT
Model 2: 3
Release tool: W220 589 01 99 54
Crimp tool: W220 589 04 99 32.
Leitungsquerschnitt Min/Max: 0,2-0,5mm2
Oberflächenschutz PINs: Au
ELA: -
Model 1: MT
Model 2: 3
Release tool: W220 589 01 99 54
Crimp tool: W220 589 04 99 32.
MSRP $3.00
$2.70
MSRP $3.00
$2.70
107
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Radio 16-polig. 2x8-pin jpt. Radio plug-connection. 2x8-pin jpt. 16-pole. 2x8-pin jpt.
109
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
MSRP $3.50
$3.15
MSRP $3.50
$3.15
109
Spring Retaining Pin Mercedes-Benz
Mercedes-Benz Description: 1.5-2.5mm2. 1.5-2.5 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
MSRP $3.90
$3.45
MSRP $3.90
$3.45
128
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Operating unit a2. 10-pin jpt. Radio 10-polig. 10-pin jpt. Radio set,10-pole. 10-pin jpt.
133
Plug Mercedes-Benz
Mercedes-Benz Description: Left 02 probe upstream of cat. G3/3. Oxygen sensor,black. Oxygen sensor downstream of catalytic converter g3/5. 02 sensor in front of catalytic converter 4-pin. Diagnosis probe. Oxygen sensor plug connection. Fuel delivery pump control unit n118.
MSRP $10.00
$8.85
MSRP $10.00
$8.85
133
Contact Carrier Mercedes-Benz
Mercedes-Benz Description: Nox sensor separation point x86/1. 4-pin lks1.5. 4-pole to 210 540 62 81. 4-pin lks1.5.
MSRP $7.50
$6.75
MSRP $7.50
$6.75
135
MSRP $3.20
$2.85
135
Contact Pin Mercedes-Benz
Mercedes-Benz Description: 0,5-1,0mm2. 0.5-0.75 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5. 0.5-1.0 mm2. 0.5-0.75 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5. 0,5-1,0 MM. 0.5-0.75 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5.
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5. 0.5-1.0 mm2. 0.5-0.75 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5. 0,5-1,0 MM. 0.5-0.75 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5.
MSRP $3.90
$3.45
MSRP $3.90
$3.45
139
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Engine plug connection. Timing eam. Amplifier,sound system. Plug connection aam.
143
181
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Damper adjustment control unit N51/5. 2-pin mqs.
MSRP $5.00
$4.50
MSRP $5.00
$4.50
181
Cover Mercedes-Benz
Mercedes-Benz Description: To 0295454028. 2-pin mqs. Level control control unit connector n51/3*2. 2-pin mqs. Electronic Stability Program control unit TO A 029 545 40 28. 2-PIN MQS. Air suspension control module n51/3. 2-pin mqs.
MSRP $7.25
$6.45
MSRP $7.25
$6.45
185
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 0.75mm2. 0.75 MM2
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS.
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS.
MSRP $5.25
$4.65
MSRP $5.25
$4.65
185
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 0.35-0.5 MM2. 0.25-0.5 MM2 MQS
Leitungsquerschnitt Min/Max: 0,25-0,35mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS. 3-PIN PLUG AMP. 0.25-0.5 MM2 MQS
Leitungsquerschnitt Min/Max: 0,25-0,35mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS. 0.2 - 0.5 MM2. 0.25-0.5 MM2 MQS
Leitungsquerschnitt Min/Max: 0,25-0,35mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS.
Leitungsquerschnitt Min/Max: 0,25-0,35mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS. 3-PIN PLUG AMP. 0.25-0.5 MM2 MQS
Leitungsquerschnitt Min/Max: 0,25-0,35mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS. 0.2 - 0.5 MM2. 0.25-0.5 MM2 MQS
Leitungsquerschnitt Min/Max: 0,25-0,35mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS.
187
Cap Mercedes-Benz
Mercedes-Benz Description: N51/3*1. Part 1 to a 001 545 99 40. Level control system control unit n51/3*3. To a 033 545 75 28. To a 001 545 98 40. To 0015459840. Plug housing to 001 545 98 40. Air suspension control module n51/3.
MSRP $4.50
$4.05
MSRP $4.50
$4.05
187
Contact Socket Housing Mercedes-Benz
Mercedes-Benz Description: Abc control module. 30-pin mqs
model 1: mqs
slots: 30. Control module electronic stability program n30/4,. 30-pin mqs
model 1: mqs
slots: 30. Control unit eps/abc. 30-pin mqs
model 1: mqs
slots: 30. 30-pole. 30-pin mqs
model 1: mqs
slots: 30. Control unit esp. 30-pin mqs
model 1: mqs
slots: 30. Traction system control module 30-polig. 30-pin mqs
model 1: mqs
slots: 30.
model 1: mqs
slots: 30. Control module electronic stability program n30/4,. 30-pin mqs
model 1: mqs
slots: 30. Control unit eps/abc. 30-pin mqs
model 1: mqs
slots: 30. 30-pole. 30-pin mqs
model 1: mqs
slots: 30. Control unit esp. 30-pin mqs
model 1: mqs
slots: 30. Traction system control module 30-polig. 30-pin mqs
model 1: mqs
slots: 30.
MSRP $11.50
$10.20
MSRP $11.50
$10.20
213
Receptacle Mercedes-Benz
Mercedes-Benz Description: Tin-plated. 1.5-2.5 MM2 FF6.3Leitungsquerschnitt Min/Max: 1,0-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: FFModel 2: 6.3. TO 001 545 10 28,012 545 31 28. 1.5-2.5 MM2 FF6.3Leitungsquerschnitt Min/Max: 1,0-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: ...
MSRP $2.70
$2.40
MSRP $2.70
$2.40
213
Contact Spring Mercedes-Benz
Mercedes-Benz Description: 0,35-0,5mm. Relay branch-off 0.8-1.0 mm2.
MSRP $1.90
$1.65
MSRP $1.90
$1.65
221
Cable Shoe Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Ground connection 5 mm2. Relay branch-off. Ground 8.5 mm. Fuse/relay box 8.5 mm2.
230
Plug Housing Mercedes-Benz
Mercedes-Benz Description: Control module easy-shift manual tran. Control unit connection. 2-pin jpt
model 1: jpt
model 2: 2.8
slots: 2
release tool: w000 589 13 99 30.
model 1: jpt
model 2: 2.8
slots: 2
release tool: w000 589 13 99 30.
MSRP $6.25
$5.55
MSRP $6.25
$5.55
231
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Transmission control module n15/3. 12-pin jptmodel 1: jptmodel 2: 2.8slots: 12release tool: w000 589 13 99 30. Electronic transmission control n15/3. 12-pin jptmodel 1: jptmodel 2: 2.8slots: 12release tool: w000 589 13 99 30. Air brake and central locking ...
MSRP $4.90
$4.41
MSRP $4.90
$4.41
231
Cap Mercedes-Benz
Mercedes-Benz Description: N15/3. Electronic transmission control (etc) control unit. 12-pin jpt. To a 210 545 01 40. 12-pin jpt.
MSRP $7.25
$6.35
MSRP $7.25
$6.35
232
Cap Mercedes-Benz
Mercedes-Benz Description: N15/3. Electronic transmission control (etc) control unit. 18-pin jpt.
253
Cable Shoe Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Belt locking retractor control unit.
261
Receptacle Mercedes-Benz
Mercedes-Benz Description: Tin-plated 0.5-1.0 mm2 FF6.3. 0.5-1.0 MM2 FF6.3
Leitungsquerschnitt Min/Max: 0,5-1mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: FF
Model 2: 6.3. 0.5-1.0 MM2, TO A 012 545 31 28. 0.5-1.0 MM2 FF6.3
Leitungsquerschnitt Min/Max: 0,5-1mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: FF
Model 2: 6.3.
Leitungsquerschnitt Min/Max: 0,5-1mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: FF
Model 2: 6.3. 0.5-1.0 MM2, TO A 012 545 31 28. 0.5-1.0 MM2 FF6.3
Leitungsquerschnitt Min/Max: 0,5-1mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: FF
Model 2: 6.3.
MSRP $2.90
$2.55
MSRP $2.90
$2.55
267
268
269
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Combination switch. Plug connection, group of switches, centre console.
269
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Dome lamp;3-pole. 3-pin. Cigar lighter. 3-pin. Rear dome lamp. 3-pin.
277
279
302
Plug Mercedes-Benz
Mercedes-Benz Description: Ignition lock. 8-pin+2-pin. Selector lever module. 8-pin+2-pin. Gear recognition switch. 8-pin+2-pin.
309
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Electric window regulator switch. Plug connection for engine,cockpit. Seat adjustment switch.
326
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 0.5-0.75 MM2 MQS ELA
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: MQS.
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: MQS.
332
Blanking Plug Mercedes-Benz
Mercedes-Benz Description: PLUG CONNECTION
Leitungsquerschnitt Min/Max: 5,1mm2
Model 1: Metri Pack
Model 2: 150.
Leitungsquerschnitt Min/Max: 5,1mm2
Model 1: Metri Pack
Model 2: 150.
MSRP $2.60
$2.34
MSRP $2.60
$2.34
335
Receptacle Mercedes-Benz
Mercedes-Benz Description: 0,35-0,5MM2 MP150
Leitungsquerschnitt Min/Max: 0,35-0,5mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: MP
Model 2: 150.
Leitungsquerschnitt Min/Max: 0,35-0,5mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: MP
Model 2: 150.
MSRP $2.20
$1.95
MSRP $2.20
$1.95
335
MSRP $2.40
$2.10
335
MSRP $2.90
$2.55
335
Contact Spring Mercedes-Benz
Mercedes-Benz Description: 0.5-1.0 mm2. 0.5-1.0MM2 MP150
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: MP
Model 2: 150.
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: MP
Model 2: 150.
MSRP $2.50
$2.25
MSRP $2.50
$2.25
343
Receptacle Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Pressure sending unit, tank.
345
Contact Spring Mercedes-Benz
Mercedes-Benz Description: TO 140 545 35 28
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: JPT
Model 2: 2.8.
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: JPT
Model 2: 2.8.
356
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Central locking system. 3-pin 150s. Electric seat adjuster with memory. 3-pin 150s. Parametric steering control unit. 3-pin 150s. Rear dome lamp. 3-pin 150s. Spare wheel carrier. 3-pin 150s.
361
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Sun visor with mirror,right. From cable connector to blinker lamps. Front brake lining wear indicator.
367
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Plug socket 12v. Pass. Left rear reading lamp. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Additional heater control unit. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Radio connection x58/2. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Front interior socket ...
MSRP $5.25
$4.65
MSRP $5.25
$4.65
375
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: JPT
Model 1: JPT
Model 2: 2.8
Slots: 4. Me. Engine control module n3/9. 4-pin. Control unit connection. 4-pin. Engine control module 4-polig. 4-pin.
Model 1: JPT
Model 2: 2.8
Slots: 4. Me. Engine control module n3/9. 4-pin. Control unit connection. 4-pin. Engine control module 4-polig. 4-pin.
381
Plug Housing Mercedes-Benz
Mercedes-Benz Description: Mqs. Engine control module. 12-pin. Me. Control unit. 12-pin.
381
Plug Housing Mercedes-Benz
Mercedes-Benz Description: Mqs. Me. Control unit. 12-pin. Engine control module n3/9 cod.a. 12-pin.
381
Housing Mercedes-Benz
Mercedes-Benz Description: Engine subassembly control box. Plug to 001 545 83 40. Part 2 to a0015458340 / a0015458440. Me. Control unit.
381
Cap Mercedes-Benz
Mercedes-Benz Description: Engine control module. Pin bushing housing to 001 545 77 40. Plug housing to 001 545 83 40. Me. Control unit.
413
Receptacle Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Transmission shifting lock. 2-pin. Parking interlock. 2-pin. Back-up lock and cruise control. 2-pin. Plug connection,entrance illumination,doors front left and right 2-polig. 2-pin.
MSRP $15.00
$13.50
MSRP $15.00
$13.50
419
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.40
MSRP $2.70
$2.40
421
Cap Mercedes-Benz
Mercedes-Benz Description: Electronic control. To 001 540 99 81. Control unit. (valve unit) "nag".
MSRP $4.00
$3.60
MSRP $4.00
$3.60
421
Contact Socket Housing Mercedes-Benz
Mercedes-Benz Description: Transmission control. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. Control unit. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. (valve unit) "nag". 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. Etc valve unit. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. Valve strip. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. Automatic transmission. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12.
model 1: lks
model 2: 1.5
slots: 12. Control unit. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. (valve unit) "nag". 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. Etc valve unit. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. Valve strip. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12. Automatic transmission. 12-pin lks1.5
model 1: lks
model 2: 1.5
slots: 12.
MSRP $16.00
$14.40
MSRP $16.00
$14.40
425
Seal Mercedes-Benz
Mercedes-Benz Description: Induction throttle valve abs susp. Y86/1. 4.0 MM MLK1.2/LKS1.5Leitungsquerschnitt Min/Max: 4,0mm2ELA: +Model 1: MLK1.2/LKSModel 2: 1.5Release tool: W220 589 01 99 25Crimp tool: W220 589 01 99 84. FRONT VALVE UNIT Y36/1. 4.0 MM MLK1.2/LKS1.5Leitungsquerschn ...
MSRP $1.10
$0.93
MSRP $1.10
$0.93
425
Contact Socket Mercedes-Benz
Mercedes-Benz Description: TO 001 540 99 81. 0.75-1.0 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,75-1,0mm2
Oberflächenschutz PINs: Ag
ELA: +
Model 1: LKS
Model 2: 1.5.
Leitungsquerschnitt Min/Max: 0,75-1,0mm2
Oberflächenschutz PINs: Ag
ELA: +
Model 1: LKS
Model 2: 1.5.
MSRP $5.00
$4.50
MSRP $5.00
$4.50
431
Housing Mercedes-Benz
Mercedes-Benz Description: Breakdown/information button conn. Glove compartment. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Mobile phone disconnecting point x39/37. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Plug connection, group of switches, centre console. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Contact carrier to 001 545 59 40. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60.
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Mobile phone disconnecting point x39/37. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Plug connection, group of switches, centre console. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Contact carrier to 001 545 59 40. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60.
MSRP $3.60
$3.17
MSRP $3.60
$3.17
460
Pin Bushing Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Terminal 15. Seat adjuster.
463
Multi-Purpose Fuse Mercedes-Benz
Mercedes-Benz Description: Retainer. 30A. Fuel pump. 30a. SAM control unit, front 30A. 30A. Headlamp wiper/washer 30a. 30a.
MSRP $7.50
$6.60
MSRP $7.50
$6.60
466
Grommet Mercedes-Benz
Mercedes-Benz Description: Rear fender. Outer side wall LINKS. Rear bumper. To plug the bores in distributor box. Cable passage. Rear body panel.
477
MSRP $1.40
$1.20
485
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Hitching mechanism plug-connection. Inboard cable harness plug-connection. Seat. Sound system.
501
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Roof mounted cable harness.
501
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Roof mounted cable harness.
501
502
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
TO BE ADAPTED DURING ASSEMBLY
TO BE ADAPTED DURING ASSEMBLY
Description: Roof mounted cable harness.
502
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
TO BE ADAPTED DURING ASSEMBLY
TO BE ADAPTED DURING ASSEMBLY
Description: Roof mounted cable harness.
502
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Roof mounted cable harness.
503
Pin Bushing Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Control unit aam. Timing eam.
536
548
Plug Pin Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: 0,35mm. 0.35 mm.
549
Pin Bushing Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Electric sliding/lifting roof. Roof mounted operating unit.
554
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Warm-up sender unit,cold start valve, air-flow sensor plate contact. 0.5-1.5mm2. TO 116 540 01 81,007 545 75 28. 0.5-1.5mm2. TO 116 540 01 81/007 545 35 28. 0.5-1.5mm2. S12. 0.5-1.5mm2. TO 002 545 64 26. 002 545 82 26. 0.5-1.5mm2. Adjustment to altitude to 007 545 7528, 116 540 0181. 0.5-1.5mm2.
MSRP $3.50
$3.15
MSRP $3.50
$3.15
589
Electric Line Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 444899
ORDER OBJECT NUMBER WITHOUT ES1
FROM IDENT NO. A 444900 ORDER OBJECT NUMBER WITH ES1 98
FROM IDENT NO. A 444900 ORDER OBJECT NUMBER WITH ES1 98
Description: Connecting cable x18/5 - x18/6.
592
607
Lock Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Housing b4/3. To a 011 545 30 26. Plug housing.
No.
Part # / Description / Price
Price
149
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
MSRP $3.50
$3.15
MSRP $3.50
$3.15
152
Contact Socket Mercedes-Benz
Mercedes-Benz Description: Silver-plated. 2.5-4.0 MM2 LSK8Leitungsquerschnitt Min/Max: 2,5-4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: LSKModel 2: 8Release tool: W220 589 01 99 56. Front SAM/SRB control unit. 2.5-4.0 MM2 LSK8Leitungsquerschnitt Min/Max: 2,5-4,0mm2Oberflächensch ...
MSRP $5.25
$4.65
MSRP $5.25
$4.65
215
239
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Intermediate conn. Wheel arch fan motor A27/1. 2-PIN SLK2.8
Model 1: SLK
Model 2: 2.8
Slots: 2
Release tool: W220 589 01 99 62. FAN MOTOR OIL M4/1. 2-PIN SLK2.8
Model 1: SLK
Model 2: 2.8
Slots: 2
Release tool: W220 589 01 99 62. Control unit, auxilliary heater. 2-pin slk2.8
model 1: slk
model 2: 2.8
slots: 2
release tool: w220 589 01 99 62.
Model 1: SLK
Model 2: 2.8
Slots: 2
Release tool: W220 589 01 99 62. FAN MOTOR OIL M4/1. 2-PIN SLK2.8
Model 1: SLK
Model 2: 2.8
Slots: 2
Release tool: W220 589 01 99 62. Control unit, auxilliary heater. 2-pin slk2.8
model 1: slk
model 2: 2.8
slots: 2
release tool: w220 589 01 99 62.
242
Contact Socket Mercedes-Benz
Mercedes-Benz Description: DOOR LOCK. 0.5-0.75 MM2 SLK2.8Leitungsquerschnitt Min/Max: 0,5-0,75mm2Oberflächenschutz PINs: AgELA: +Model 1: SLKModel 2: 2.8Release tool: W220 589 01 99 62Crimp tool: W220 589 01 99 09. Airbag trigger unit, in front module left and right b48/1. Lighting ...
MSRP $3.70
$3.33
MSRP $3.70
$3.33
257
Contact Socket Mercedes-Benz
Mercedes-Benz Description: TO 001 540 99 81. 0.75-1.0 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,75-1,0mm2
Oberflächenschutz PINs: Ag
ELA: +
Model 1: LKS
Model 2: 1.5.
Leitungsquerschnitt Min/Max: 0,75-1,0mm2
Oberflächenschutz PINs: Ag
ELA: +
Model 1: LKS
Model 2: 1.5.
MSRP $5.00
$4.50
MSRP $5.00
$4.50
266
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Power connection cod.a. Audio 10/30 radio. 8-pin jpt. Radio "a". 8-pin jpt. Cockpit cable harness plug-connection. 8-pin jpt. Operating unit a2. 8-pin jpt.
MSRP $4.50
$4.05
MSRP $4.50
$4.05
419
Crimp Tml Pin Contact Mercedes-Benz
Mercedes-Benz Description: X1/16. 0.5-0.75 MM2 MQSLeitungsquerschnitt Min/Max: 0,5-0,75mm2Oberflächenschutz PINs: SnELA: -Model 1: MQSRelease tool: W220 589 01 99 60Crimp tool: W220 589 01 99 85. Malfunction indicator lamp aut. Breakdown/information button conn. X 39/48. 0.5-0.75 M ...
MSRP $2.80
$2.48
MSRP $2.80
$2.48
452
Coupling Housing, Elec Mercedes-Benz
Mercedes-Benz Description: Audio/video splitter module. Control unit connection n41/6. 40-pin mqs
model 1: mqs
slots: 40
release tool: w220 589 01 99 60. Gps control unit n41/2. 40-pin mqs
model 1: mqs
slots: 40
release tool: w220 589 01 99 60.
model 1: mqs
slots: 40
release tool: w220 589 01 99 60. Gps control unit n41/2. 40-pin mqs
model 1: mqs
slots: 40
release tool: w220 589 01 99 60.
MSRP $15.50
$13.80
MSRP $15.50
$13.80
641
Flat Pin Bushing Mercedes-Benz
Mercedes-Benz Description: TO 008 545 34 28/ 35 28/ 36 28. 0.5 MM2 FF6.3
Leitungsquerschnitt Min/Max: 0,5mm2
Oberflächenschutz PINs: Ag
Model 1: FF
Model 2: 6.3.
Leitungsquerschnitt Min/Max: 0,5mm2
Oberflächenschutz PINs: Ag
Model 1: FF
Model 2: 6.3.
698
Intermediate Layer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Belt lock switch. Co-driver's legroom.
707
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED ACCORDING TO THE TOTAL LINE CROSS-SECTION TO BE CONNECTED. FOR REPAIR INSTRUCTIONS, SEE WIS
SOLD.CONN.SLVS: A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT CONNECTOR: A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
Description: Emergency tensioning retractor r12.
708
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED ACCORDING TO THE TOTAL LINE CROSS-SECTION TO BE CONNECTED. FOR REPAIR INSTRUCTIONS, SEE WIS
SOLD.CONN.SLVS: A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT CONNECTOR: A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
Description: Windowbag r12.
